ZJ工业渣浆泵 添加时间：2023-07-04
ZJ系列渣浆泵为卧式、轴向吸入、单级、单吸、离心式渣浆泵。型号有450ZJ、400ZJ、350ZJ、300ZJ、250ZJ、200ZJ、150ZJ、100ZJ、80ZJ、65ZJ、50ZJ、40ZJ，共70多种泵型。
产品详情
性能范围
流量4.5m3/h～6000 m3/h，
扬程6m ～134m
特点：ZJ系列渣浆泵是我公司生产的耐磨渣浆泵产品，具有高效节能、振动小、噪声低、运行可靠、使用寿命长、维修方便等特点。
适用范围：可广泛用于电力、冶金、煤炭、建材等行业输送含有固体颗粒的浆体。如火电厂水力除灰、冶金选矿厂矿浆输送、洗煤厂煤浆及重介输送等。其允许输送的大浆体重量浓度Cw为：灰（渣）浆和煤浆45%；矿浆和重介60%。
结构图

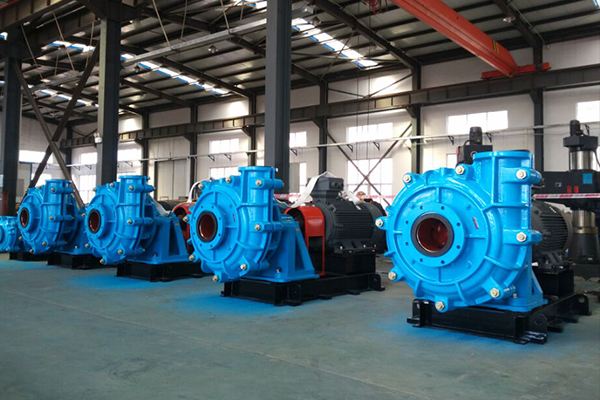

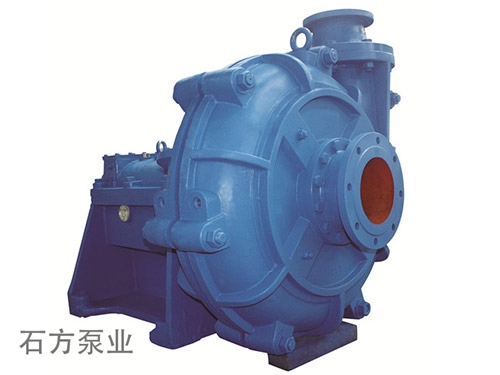

产品展示
ZJ型渣浆泵性能参数表
| 型号 | 电机功率范围(KW) | 性 能 参 数 | 通过最大粒度(mm) |
重量 (kg) |
|||||
| 流量Q(m3/h) | 扬程H(m) | 转速n(r/min) | 最高效率η(%) |
汽蚀余量(NPSH)r (m) |
|||||
| 300ZJ-I-A100 | 250-450 | 464-1826 | 15.3-65.2 | 300-590 | 80.7 | 3 | 88 | 5265 | |
| 300ZJ-I-A95 | 315-400 | 441-1735 | 13.8-58.8 | 300-590 | 77.7 | 3 | 88 | 5220 | |
| 300ZJ-I-A90 | 185-560 | 505-1844 | 21.2-79.9 | 400-730 | 81.4 | 3.9 | 85 | 5005 | |
| 300ZJ-I-A85 | 220-450 | 477-1742 | 18.9-71.3 | 400-730 | 78.4 | 3.8 | 85 | 4965 | |
| 300ZJ-I-A70 | 185-630 | 635-2333 | 16.0-76.8 | 490-980 | 80.4 | 3.9 | 92 | 3560 | |
| 300ZJ-I-A65 | 160-500 | 589-2166 | 13.8-66.2 | 490-980 | 77.4 | 3.7 | 92 | 3531 | |
| 300ZJ-I-A56 | 132-250 | 395-1568 | 9.7-46.0 | 400-980 | 80.9 | 3.5 | 96 | 3030, | |
| 250ZJ-I-A103 | 250-560 | 402-1573 | 29.7-110.5 | 400-730 | 74.5 | 2.8 | 69 | 5085 | |
| 250ZJ-I-A96 | 250-560 | 403-1466 | 25.4-93.7 | 400-730 | 77.8 | 3.5 | 69 | 5035 | |
| 250ZJ-I-A96 | 220-450 | 378-1374 | 22.3-82.4 | 400-730 | 73.8 | 3.4 | 69 | 4980 | |
| 250ZJ-I-A85 | 315-800 | 376-1504 | 30.1-128.7 | 490-980 | 75.6 | 3.5 | 76 | 4530 | |
| 250ZJ-I-A83 | 250-800 | 367-1469 | 28.7-122.7 | 490-980 | 74.6 | 3.5 | 76 | 4514 | |
| 250ZJ-I-A80 | 220-710 | 354-1416 | 26.7-114.0 | 490-980 | 72.6 | 3.4 | 76 | 4490 | |
| 250ZJ-I-A78 | 200-630 | 345-1380 | 25.4-108.4 | 490-980 | 70.6 | 3.2 | 76 | 4474 | |
| 250ZJ-I-A75 | 185-560 | 300-1480 | 20.8-97.5 | 490-980 | 76 | 3 | 72 | 3480 | |
| 250ZJ-I-A73 | 160-500 | 292-1441 | 19.7-92.4 | 490-980 | 75 | 3 | 72 | 3466 | |
| 250ZJ-I-A70 | 160-450 | 280-1381 | 18.1-84.9 | 490-980 | 73 | 2.9 | 72 | 3446 | |
| 250ZJ-I-A68 | 110-450 | 272-1342 | 17.1-80.1 | 490-980 | 72 | 2.7 | 72 | 3432 | |
| 250ZJ-I-A65 | 110-315 | 299-1249 | 15.4-71.0 | 490-980 | 76.9 | 3 | 72 | 3020 | |
| 250ZJ-I-A63 | 110-315 | 290-1211 | 14.4-66.7 | 490-980 | 75.9 | 3 | 72 | 3008 | |
| 250ZJ-I-A60 | 90-280 | 276-1153 | 13.1-60.5 | 490-980 | 73.9 | 2.8 | 72 | 2991 | |
| 200ZJ-I-A85 | 185-560 | 221-907 | 32.0-133.7 | 490-980 | 70.5 | 2.8 | 54 | 4110 | |
| 200ZJ-I-A75 | 132-355 | 225-900 | 22.8-102.9 | 490-980 | 72.8 | 3 | 56 | 3070 | |
| 200ZJ-I-A73 | 110-355 | 219-876 | 21.6-97.5 | 490-980 | 71.8 | 3 | 56 | 3056 | |
| 200ZJ-I-A70 | 110-315 | 205-976 | 19.4-86.4 | 490-980 | 75.6 | 2.8 | 56 | 24, 65 | |
| 200ZJ-I-A68 | 90-315 | 199-948 | 18.3-81.5 | 490-980 | 74.6 | 2.8 | 56 | 2453 | |
| 200ZJ-I-A65 | 90-250 | 235-950 | 16.4-72.0 | 490-980 | 79.6 | 2.5 | 62 | 2323 | |
| 200ZJ-I-A63 | 90-250 | 228-921 | 15.4-67.6 | 490-980 | 78.6 | 2.5 | 62 | 2311 | |
| 200ZJ-I-A60 | 75-185 | 218-870 | 13.9-62.0 | 490-980 | 82.7 | 2.5 | 62 | 2223 | |
| 200ZJ-I-A58 | 75-185 | 211-841 | 13.0-57.9 | 490-980 | 81.7 | 2.5 | 62 | 2214 | |
| 150ZJ-I-A70 | 55-185 | 93-401 | 22.0-91.2 | 490-980 | 62.3 | 2 | 37 | 2245 | |
| 150ZJ-I-A65 | 55-200 | 150-600 | 17.4-75.7 | 490-980 | 69.2 | 2.5 | 48 | 2223 | |
| 150ZJ-I-A63 | 55-185 | 146-582 | 16.3-71.1 | 490-980 | 69.2 | 2.5 | 48 | 2211 | |
| 150ZJ-I-A60 | 45-160 | 135-550 | 14.7-63.5 | 490-980 | 74.6 | 2.5 | 48 | 2203 | |
| 150ZJ-I-A58 | 45-132 | 131-532 | 13.7-59.3 | 490-980 | 73.6 | 2.5 | 48 | 2033 | |
| 150ZJ-I-A55 | 45-110 | 124-504 | 12.3-53.4 | 490-980 | 71.6 | 2.3 | 48 | 2019 | |
| 150ZJ-I-C58 | 55-160 | 134-596 | 12.8-61.0 | 490-980 | 69.1 | 2 | 75 | 2063 | |
| 150ZJ-I-A57 | 45-110 | 95-427 | 13.2-56.3 | 490-980 | 66.6 | 1.8 | 32 | 2023 | |
| 150ZJ-I-A50 | 45-75 | 115-460 | 9.5-43.1 | 490-980 | 76.8 | 2.5 | 48 | 1735 | |
| 150ZJ-I-A48 | 37-75 | 111-442 | 8.7-39.7 | 490-980 | 75.8 | 2.5 | 48 | 1728 | |
| 150ZJ-I-C42 | 45-132 | 142-550 | 12.1-62.8 | 700-1480 | 76.4 | 2.2 | 69 | 1605 | |
| 100ZJ-I-A50 | 55-160 | 85-360 | 20.5-100.2 | 700-1480 | 68.5 | 2.5 | 34 | 1475 | |
| 100ZJ-I-A46 | 45-132 | 79-331 | 17.3-84.8 | 700-1480 | 66.5 | 2.3 | 34 | 1461 | |
| 100ZJ-I-A42 | 37-90 | 66-275 | 14.7-70.8 | 700-1480 | 70.4 | 2.5 | 35 | 1075 | |
| 100ZJ-I-A39 | 22-75 | 61-255 | 12.6-61.0 | 700-1480 | 68.4 | 2.4 | 35 | 1064 | |
| 100ZJ-I-B42 | 22-75 | 45-205 | 12.6-70.7 | 700-1480 | 63.2 | 1.8 | 18 | 1085 | |
| 100ZJ-I-A36 | 18.5-55 | 61-245 | 9.7-49.5 | 700-1480 | 71.6 | 2 | 32 | 1010 | |
| 100ZJ-I-A33 | 15-45 | 56-225 | 8.2-41.6 | 700-1480 | 69.6 | 1.8 | 32 | 1003 | |
| 80ZJ-I-A52 | 55-160 | 51-242 | 22.1-109.8 | 700-1480 | 56.3 | 2.1 | 21 | 1465 | |
| 80ZJ-I-A42 | 18.5-75 | 61-204 | 14.4-70.4 | 700-1480 | 66.7 | 2.5 | 24 | 1053 | |
| 80ZJ-I-A36 | 22-45 | 46-190 | 9.6-51.4 | 700-1480 | 67.7 | 2.4 | 24 | 980 | |
| 80ZJ-I-A33 | 15-37 | 43-174 | 8.0-43.2 | 700-1480 | 65.7 | 2.3 | 24 | 973 | |
| 65ZJ-I-A30 | 4-15 | 23-79 | 7.4-34.8 | 700-1480 | 63.5 | 2 | 19 | 504 | |
| 65ZJ-I-A27 | 4-11 | 20-71 | 6.0-28.2 | 700-1480 | 61.5 | 1.8 | 19 | 500 | |
| 50ZJ-I-A50 | 30-90 | 27-111 | 22.3-110.7 | 700-1480 | 45.1 | 3 | 13 | 1378 | |
| 50ZJ-I-A46 | 15-55 | 23-94 | 17.9-85.8 | 700-1480 | 44.7 | 1.4 | 13 | 1082 | |
| 50ZJ-I-A33 | 4-18.5 | 12-54 | 7.7-42.5 | 700-1480 | 41.4 | 2.9 | 13 | 537 | |
| 40ZJ-I-A19 | 3-15 | 5-35 | 9.0-60.6 | 1400-2900 | 55.1 | 2.5 | 11 | 121 | |
| 40ZJ-I-A17 | 2.2-11 | 4-23 | 9.0-48.6 | 1400-2900 | 52.4 | 2.5 | 11 | 121 | |

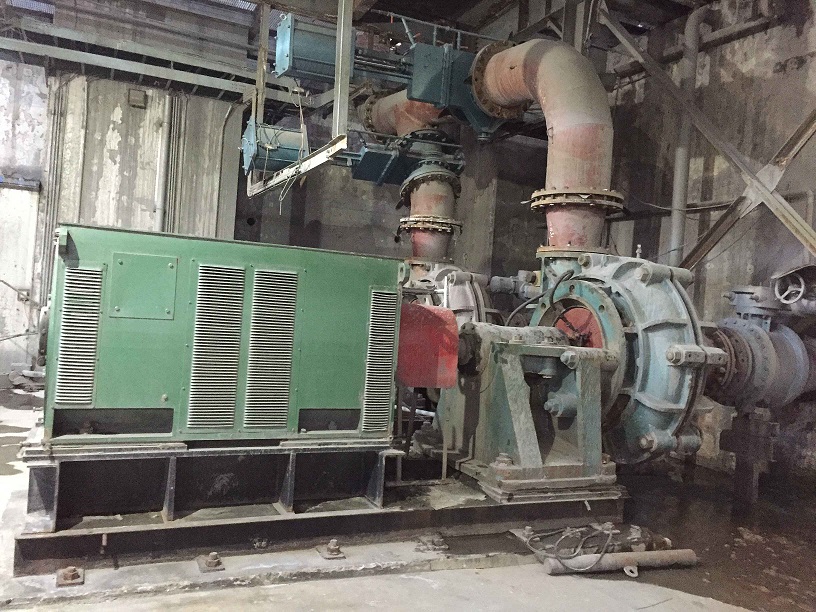

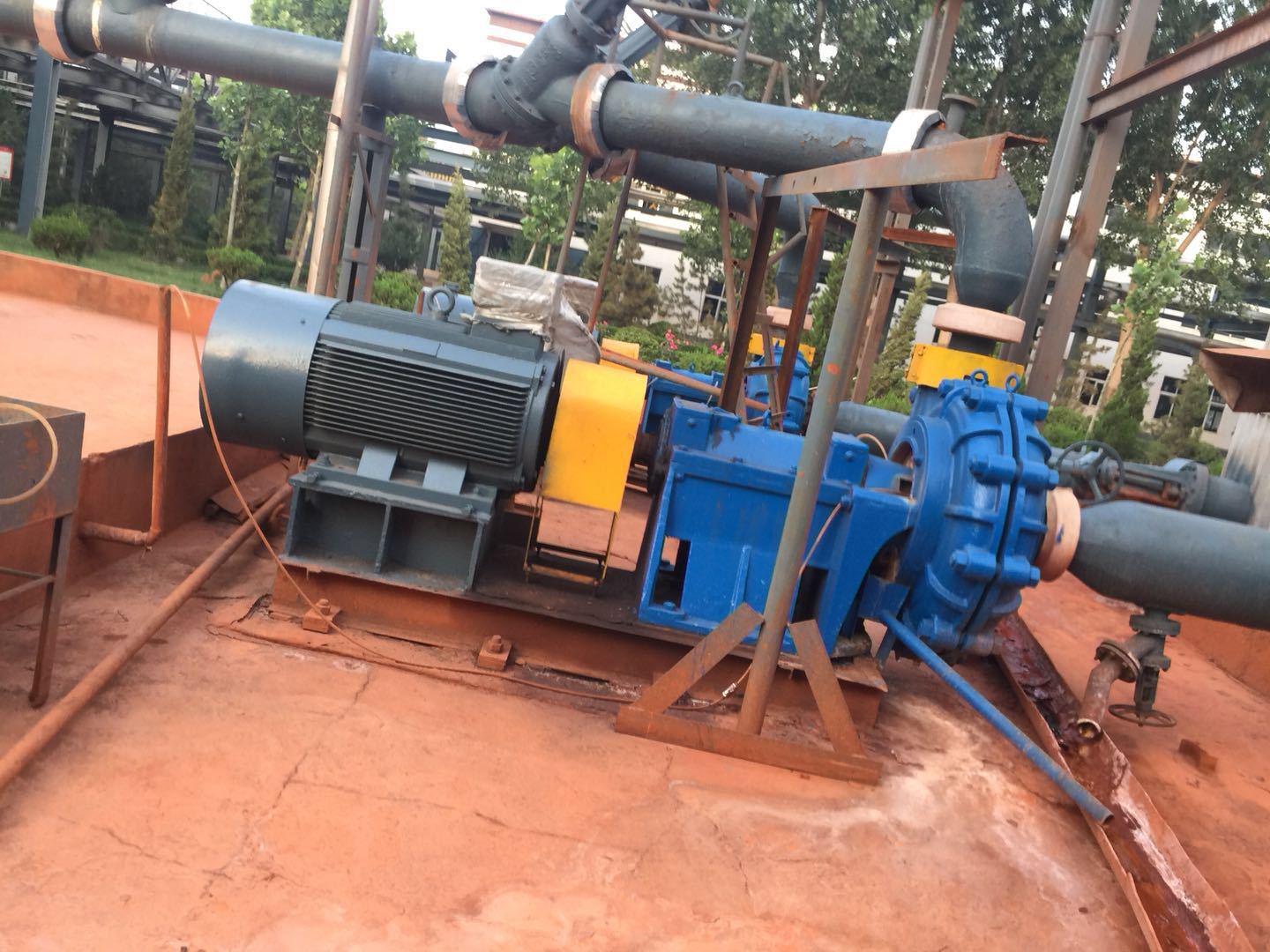

使用现场
